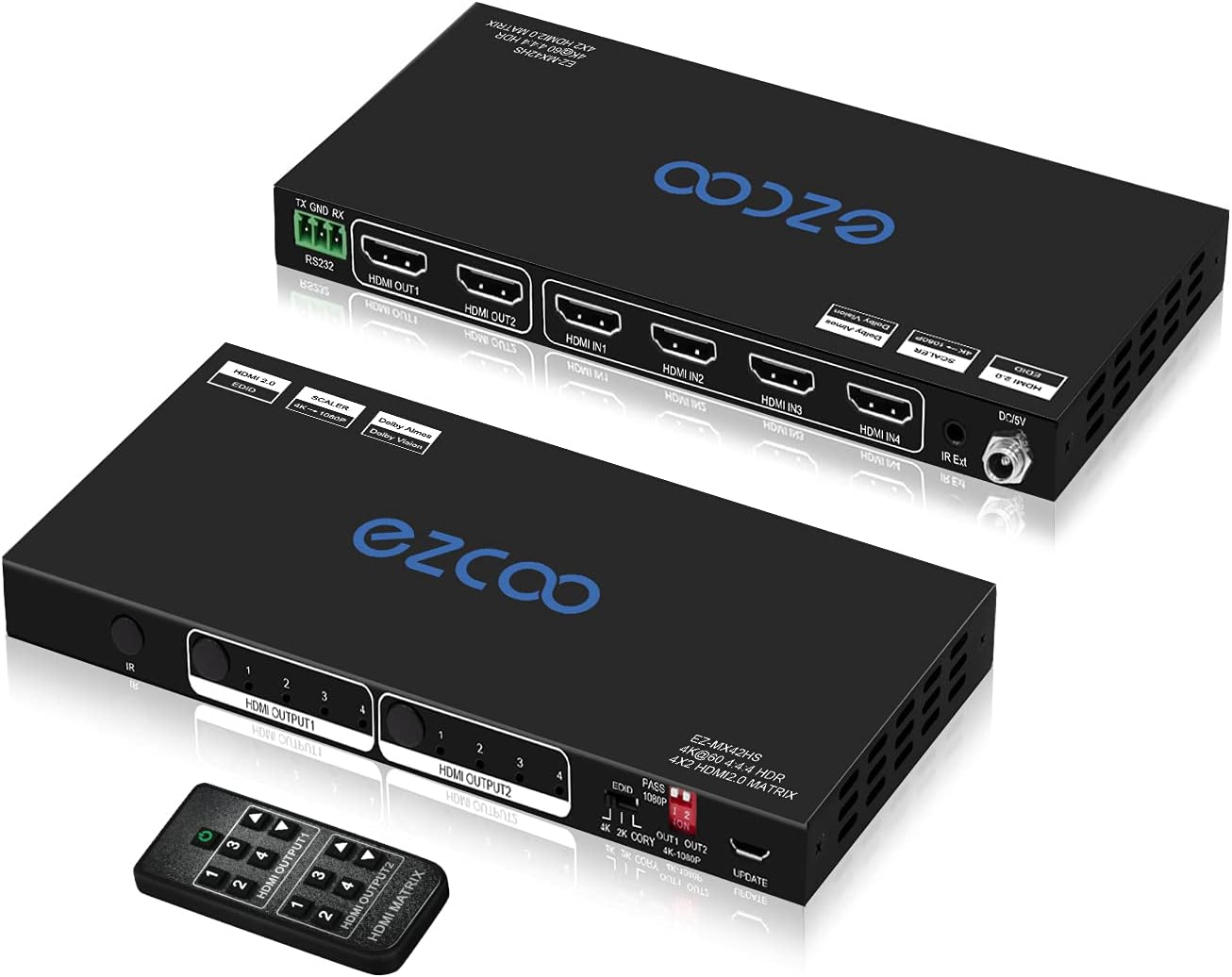

HDMI Matrix 4x2 4K 60Hz HDR 10 EDID Switch Pack of 2 D511
Sale price
$30.99
Regular price $98.24
Skip to product information
【AUDIO VIDEO 】HDMI Matrix Switch 4 in 2 out for game player, HDCP2.2 HDMI2.0 4K 60Hz 4:4:4 18Gbps 8bit HDR D-o-l-b-y Vision,HDR10,Hybrid Log-Gamma (HLG),1080p @120Hz/60Hz 3D, 3840x2160 @60Hz, 3440x1440 @ 60Hz, 1440p@60Hz ✔ D-o-l-b-y Atmos Digital 7.1CH,DTS:X audio ✔ HDMI matrix play 4K &1080P in sync or 4K HDR D-o-l-b-y Vision Atmos in sync ✔ Pls use 3~5 mtr qualified HDMI2.0 cable. NO HDMI2.1 4K120Hz NO VRR【EDID USAGE】Set EDID Down-scaler by DIP switch ✔ IF play 1080p & 4K TV in sync, Set matrix EDID COPY, 4K TV to Matrix OUT 1, 1080P TV to OUT 2, TURN ON down-scale 4K to 1080p for OUT 2 ✔ IF D-o-l-b-y Vision Atmos work in sync,Set EDID 4K, 4K TV to matrix OUT 1, Atmos soundbar to OUT2 ✔ IF monitor flick when play 4K source, set EDID 4K, TURN ON down-scale 1080p ✔ HDMI OUT play ATMOS only, ATMOS, 5.1ch audio NOT work in sync. It is not audio down mixer.【HDMI Down-Scaler USAGE】HDMI matrix switcher two outputs down-scale 4K/ HDR 10 to 1080p60Hz only. Set down-scale OUT 1 2 to 1080p separately ✔ NOT down-scale 4K HDR D-o-l-b-y Vision (4K60Hz 4:2:2), VRR, otherwise screen wash out ✔ Pls read EDID DIP Switch picture, Bullet Points, Description carefully. 4K IMAX HDMI bypass HDCP strip for IMAX DIGITAL 2K-4K【RS232 & IR Remote IR Extension cable】Provide more convenient control way for home entertainment or professional central control ✔ Pls remove battery shield in IR remote firstly ✔Mounting Ear for easy installation; Threaded power adapter ensure stable power ✔Upgrade Firmware via Micro-USB port.【HIGH COMPATIBILITY】4K HDR HDMI switcher matrix Plug & Play; 1~3 sec Fast Input Switching ✔ For N-v-i-dia Shield,Xfinity box, 4K60 MK2 Game Capture,Apple TV,Amazon Fire TV,PS4 Pro,X BoX series,wii,Xbox 360,Nintendo Switch, Comcast,MAC 1080p (by HDMI adapter) etc.✔ NO ARC NO CEC
HDMI Matrix 4x2 4K 60Hz HDR 10 EDID Switch Pack of 2 D511
Sale price
$30.99
Regular price $98.24
Shipping calculated at checkout.
| HDMI Matrix 4x2 4K MX42HS | HDMI Audio Extractor Splitter 1x1 EX11PRO | HDMI Matrix 4x2 4K SPDIF MX42PRO | |
|---|---|---|---|
| HDMI Resolution | 4K@60Hz 4:4:4 8bit/ 4:2:2 10bit, HDR D-o-l-b-y Vision, 1080p@144Hz/ 120Hz/ 60Hz 3D | 4K@60Hz 4:4:4 8bit/ 4:2:2 10bit, HDR D-o-l-b-y Vision, 1080p@144Hz/ 120Hz/ 60Hz 3D | 4K@60Hz 4:4:4 8bit/ 4:2:2 10bit, HDR D-o-l-b-y Vision, 1080p@144Hz/ 120Hz/ 60Hz 3D |
| HDMI Input/ Output | 4 IN 2 OUT | 1 IN 1 OUT | 4 IN 2 OUT |
| 18Gbps HDMI2.0 HDCP2.2 HDCP Bypass | Yes | Yes | Yes |
| HDR D-o-l-b-y Vision D-o-l-b-y Atmos Play In Sync | Yes | Yes | Yes |
| Audio Extractor | NO | SPDIF 5.1CH + Stereo 2.1CH | SPDIF 5.1CH |
| CEC ARC | NO | CEC | NO |
| EDID Management | EDID Switch : 4K 2K COPY mode | EDID DIP Switch | EDID DIP Switch 16 EDID Option |
| HDMI Down Scaler | Down-scaler Switch: HDMI OUT 1 OUT 2 | DIP Switch OUT2 Down Scaler | HDMI OUT 1 |
| HDMI 2.0 Cable | Less than 3 meter | Less than 10 meter | Less than 5 meter |
| Power Supply IR Extension Cable | Yes | Micro-USB cable NO IR Cable | Yes |
